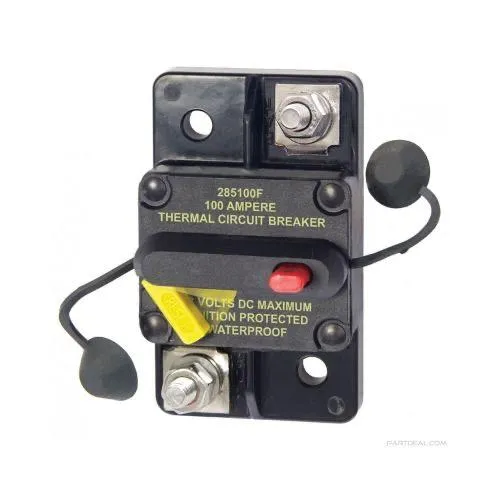

Provides circuit protection for 25-150amp loads when switching and circuit protection are both required.

Visible yellow reset lever shows open condition

Trip-free design cannot be held closed after trip

Drop in replacement for 185 Series Circuit Breakers

3,000A AIC for medium battery banks
Specifications

Interrupting Capacity 3,000A @ 48V DC†

Voltage Max. Operating 48V DC

Temperature Min. Operating -40°C

Temperature Max. Operating 85°C

Type Thermal

Class Type III – Switchable/Manual Reset – Trip Free

Terminal Stud M6 (accepts 1/4"" Ring Terminal)

Terminal Stud Torque 50 in-lb (7.9 Nm)

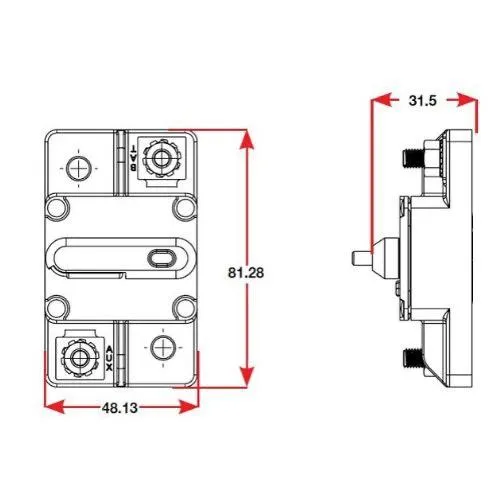

Mounting Hole Accepts 1/4"" screw (M6)
