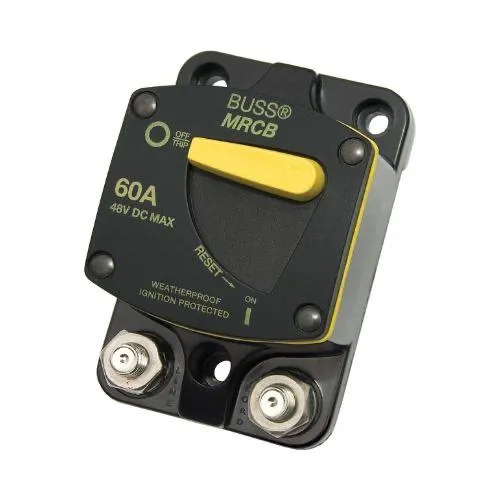

Provides circuit protection for 25 to 200 amp loads when switching and circuit protection are both required
Features

Self-trimming case eliminates need for mounting panels or trim bezels

Visible yellow reset lever shows open condition

Trip-free design cannot be held closed after trip

Recessed mounting holes for clean appearance
Specifications

Interrupting Capacity 5,000A @ 12V DC, 3,000A @ 24V DC, 1,500A @ 42V DC

Voltage Max. Operating 48V DC

Temperature Min. Operating -40°C

Temperature Max. Operating 85°C

Type Thermal

Class Type III – Switchable/Manual Reset – Trip Free

Terminal Stud 5⁄16""-18

Terminal Stud Torque 75 in-lb max.

Trip Time Delay See bluesea.com

Mounting Hole Accepts #10 (M5) Screw
